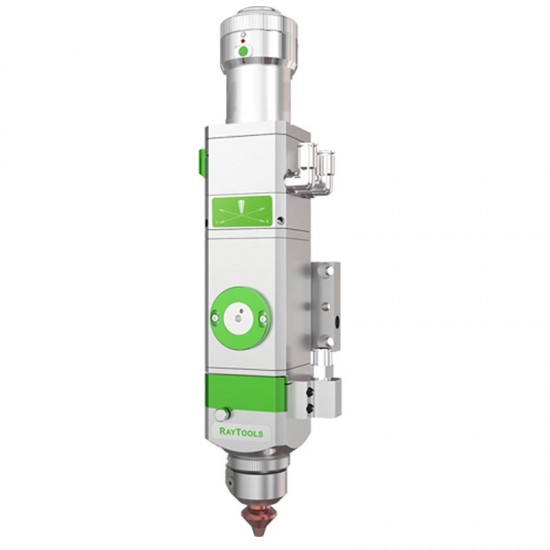

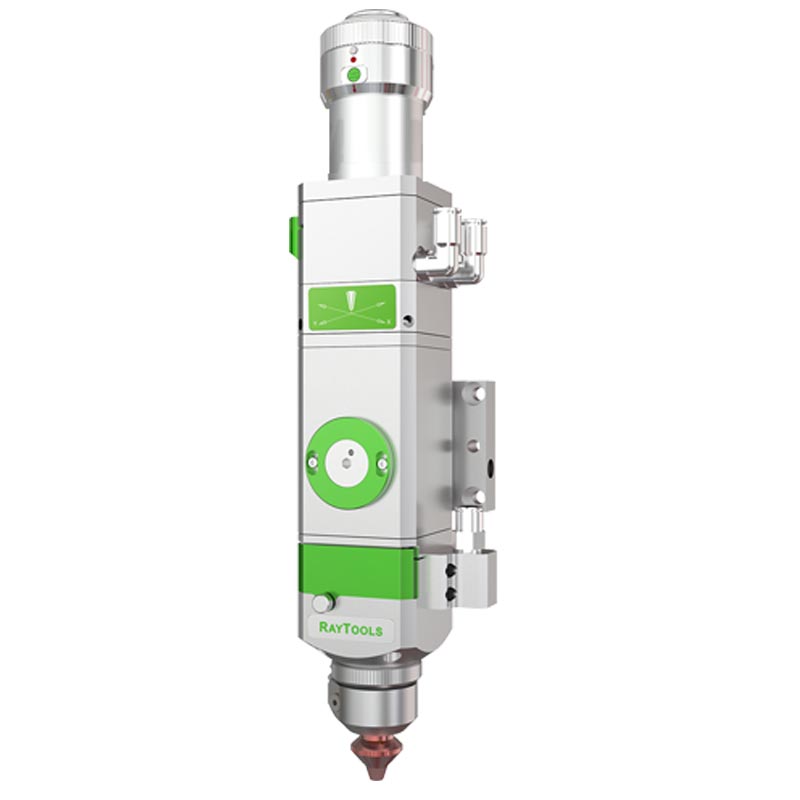

Raytools BT210S 1500W laser cutting head for fiber laser machine

Model

Parameter

Connector

QBH, QCS

Max. Power

≤1500W

Focal Aperture

25mm

Focus Lens Dia

Dia 28mm

Collimating Lens Focal Length

75mm、100mm

Focus Lens Focal Length

100mm、125mm

Nozzle Hole Specification

single, double, non-standard

Nozzles Aperture

0.8mm/1.0mm/1.2mm/1.5mm/2.0mm/

2.5mm/3.0mm/3.5mm/4.0mm/4.5mm

Collimating Protection Lens

φ24.9mm*1.5mm

Focusing Protection Lens

φ27.9mm*4.1mm

Auxiliary Gas Pressure

≤25bar

Weight

～2.3kg
