- Stock: In Stock

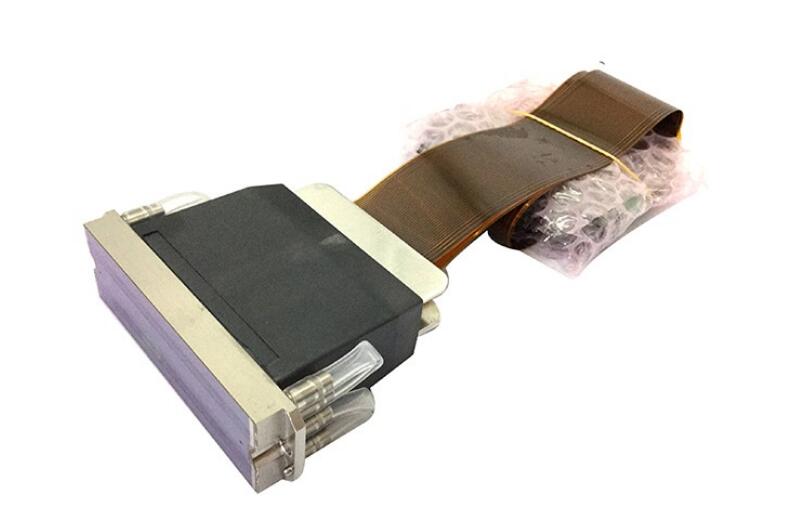

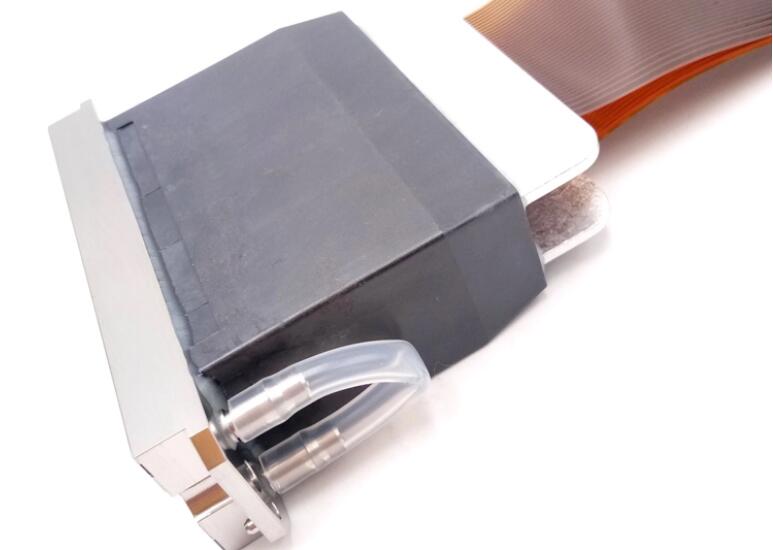

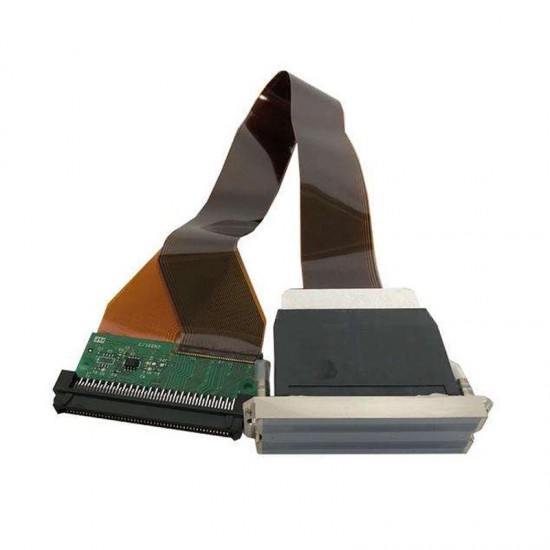

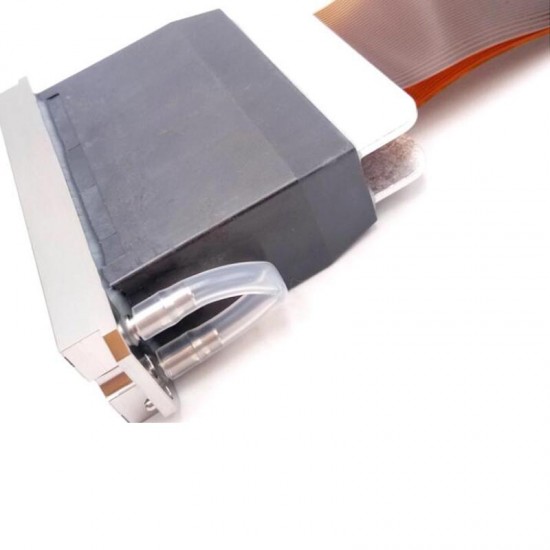

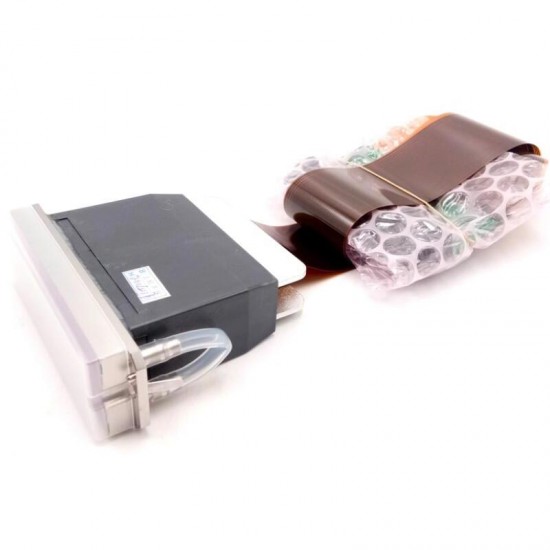

- Model: Ricoh Gen5
Characteristics
1.Single-pass 600dpi high-resolution printing and support for multiple ink colors
2.Supports water,solvent based inks and UV inks
3.Multi-drop technology enables gray scale expressions
4.Support for grey-scale
5.Variable drop volume capability
6.Excellent durability and extended service life
7.With 1,280 nozzles configured in 4 x 150dpi rows
|
Physical
Specification |
|
|
Size |
89(W)*25(D)*69(H) mm (excluding cables & connectors) |
|
Head Materials |
SST, nickel alloy & epoxy adhesive (direct contact with
ink) |
|
Compatible jetting fluids |
Compatible with water, solvent, oil, uv curable ink |
|
Nozzle plate surfacce |
Coated SST |
|
Number of nozzles |
4*320 channels |
|
Nozzle Spacing |
A: within a single row 0.1693 mm (1/150'') |
|
ink inlet port |
2 x dual ports |
|
Piezo Type |
D33 stackED PZT |
|
Drop ejection mode |
Piston pusher with metallic diaphragm plate |
|
Intergrated electronics |
Low-voltage serial to high-voltage parallel converter, 3-bit
shift resistors, transmission gate outputs |
|
Temperature Control |
Intergrated heater and thermister |
|
Viscosity |
11 cP ( at operating temp) |
|
Surface Tension |
32 Dynes/cm |
|
Native drop volume |
7 pico-liter |
|
Drop volume range / variation |
7-35 pico-liter with grey scale/±10% |
|
Drop velocity nominal / variation |
7 m/sec/±15% |
|
Crosstalk |
10% or less with all channel firing |
|
Jet straightness 1 sigma |
<3.5 milli-radian from nozzle centerline |
|
Native drop operating frequency |
60kHz (Higer burst possible under ideal condition) |
|
Life |
100 billion actuation's per nozzle |
